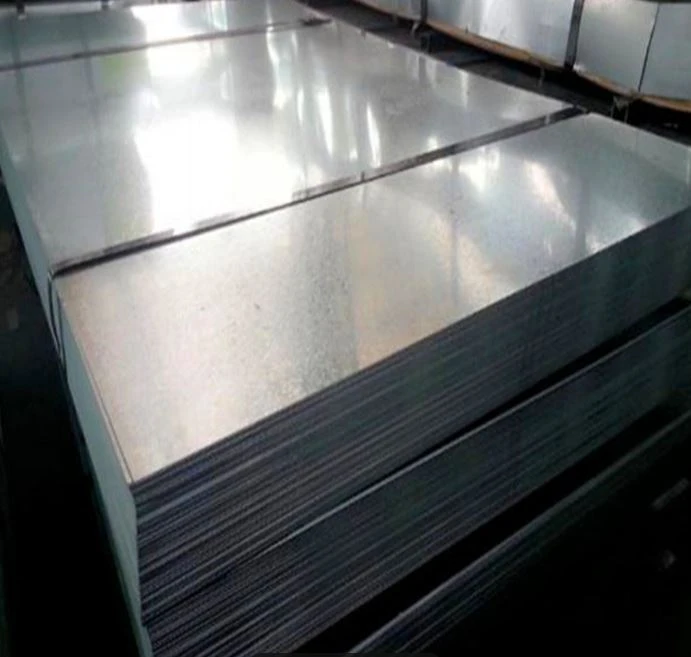

Product Name: Industrial Pure Iron Sheet
Introduction
Industrial Pure Iron Sheet is a high‑purity (> 99.8 % Fe) cold‑rolled flat product specially annealed to maximize ductility, magnetic permeability, and electrical conductivity. With minimal alloying elements and a refined grain structure, these sheets offer exceptional formability, surface continuity, and consistent performance in demanding industrial and electrical applications.
Key Specifications
| Specification | Details |
|---|---|
| Chemical Purity | ≥ 99.8 % Iron (remaining balance ≤ 0.2 % C, Si, Mn, S, P) |
| Production Standard | ASTM A1011 Grade IF / EN 10106 DC01 |
| Thickness Range | 0.20 – 3.00 mm |
| Width Range | 600 – 1,500 mm |
| Sheet Length | Up to 6,000 mm (cut‑to‑length) |
| Tensile Strength | 200–350 MPa |
| Yield Strength | 100–250 MPa |
| Elongation (min) | ≥ 30 % |
| Magnetic Permeability | ≥ 2,000 @ 0.5 T |
| Electrical Conductivity | ≥ 95 % IACS (International Annealed Copper Standard) |
| Surface Finish | Smooth bright annealed |
Custom purity levels, dimensions, and surface treatments available upon request.
Features & Advantages
Ultra‑High Purity: Minimal residual elements ensure superior magnetic and electrical properties.
Excellent Formability: Annealed soft iron allows deep drawing, stamping, and tight‑radius bending without cracking.
Superior Magnetic Performance: High permeability and low coercivity ideal for transformer cores and magnetic shielding.
Outstanding Conductivity: Near‑copper levels of electrical conductivity support efficient current flow in busbars and conductors.
Stable Surface: Bright, oxide‑free finish minimizes coating steps and enhances adhesion for plating or painting.
Applications
Electrical Equipment: Transformer cores, choke cores, and inductive components.
Magnetic Shielding: Enclosures for sensitive electronics, MRI rooms, and precision instruments.
Busbars & Conductors: Industrial power distribution and grounding bars.
Battery & Fuel‑Cell Plates: Current collectors requiring high conductivity and purity.
Precision Stamping: Contacts, connectors, and metal‑forming parts in consumer electronics.
Packaging & Delivery
Packaging:
Sheets interleaved with protective kraft or polymer film; stacked on treated wooden skids.
Edge‑protected with galvanized steel angles; banded and wrapped to prevent moisture ingress.
Coils (if applicable) fitted with rust‑inhibiting inner cores and outer wraps.
Lead Time: Standard cut‑to‑length and shipment within 15–25 days after order confirmation; expedited processing (10–15 days) available for urgent needs.
Why Choose Our Pure Iron Sheets?
Stringent Metallurgical Control: Vacuum degassing and continuous annealing ensure ultra‑low impurities and optimal grain structure.
Precision Cold‑Rolling: Advanced mills deliver tight thickness (± 0.03 mm) and flatness tolerances for consistent lamination stacking.
Comprehensive Testing: 100 % inspection for chemical composition, mechanical properties, magnetic and electrical performance to international standards.
Technical Support: In‑house metallurgists and electrical engineers provide grade selection, core design consultation, and failure‑analysis assistance within 12 hours.
Contact Us
For high‑performance Industrial Pure Iron Sheets tailored to your electromagnetic, electrical, or precision‑forming applications, please contact our sales team. We're committed to supplying premium materials and expert technical support for your most demanding projects.
