Product Name

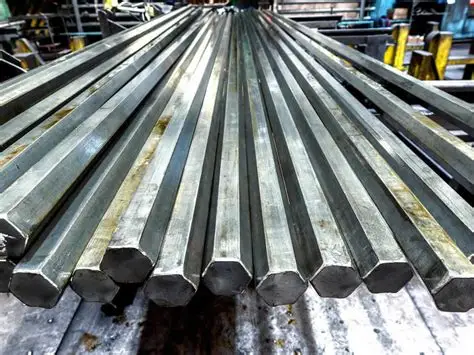

Large-Section Hexagonal Steel (Heavy Hex Bars / Hexagonal Blanks)
Introduction
Large-Section Hexagonal Steel are heavy, six-sided solid bars (hex bars) or large hexagonal tubes used where a faceted profile, high section area and strong wrenching/fixturing faces are required. Supplied as hot-rolled, forged or precision-ground bars, these products serve as blanks for large fasteners, coupling hubs, heavy shafts with flats, forging feedstock and structural dowels. Available in carbon, alloy and stainless grades, large hex bars combine machinability, simple clamping/torque faces and excellent mechanical capacity.
Typical Specifications
Forms: Solid hex bars (regular hexagon across-flats dimension), and large hexagonal hollow sections (tube) on request.
Materials / Grades: Carbon & medium-carbon (e.g., C45/1045), alloy steels (4140/42CrMo), structural/high-strength (S355, S420), stainless (304/316, duplex) and custom alloys.
Manufacture: Hot-rolled long bars, forged & straightened, cold-drawn or precision ground to size. Large blanks produced by forging or billet machining where required.
Across-flats dimension (D): 40 mm – 800 mm (typical); larger sizes possible by forging/machining.
Lengths: Standard mill lengths (3 m / 6 m / 12 m) or cut-to-length to customer requirement; single-piece lengths limited by transport/handling.
Tolerances: Hot-rolled ±0.5–3.0 mm; cold-drawn/ground ±0.01–0.3 mm depending on precision class.
Surface finish: Mill scale, peeled & oiled, turned, ground & polished, or coated with corrosion inhibitor.
Straightness: Typical ≤ 0.5–2.0 mm/m; tighter control available.
Mass / Weight Formula (solid regular hexagon)
Area (mm²) of a regular hexagon with across-flats D (mm):
A=338 D2 ≈ 0.649519 D2A = \frac{3\sqrt{3}}{8}\,D^{2}\ \approx\ 0.649519\,D^{2}A=833D2 ≈ 0.649519D2
Mass per metre (steel, ρ ≈ 7850 kg/m³):
mass (kg/m)≈0.00785×A≈0.0050987×D2\text{mass (kg/m)} \approx 0.00785 \times A \approx 0.0050987 \times D^{2}mass (kg/m)≈0.00785×A≈0.0050987×D2
Quick examples (across-flats D):
D = 50 mm → ≈ 12.75 kg/m
D = 100 mm → ≈ 50.99 kg/m
D = 200 mm → ≈ 203.95 kg/m
D = 300 mm → ≈ 458.89 kg/m
D = 400 mm → ≈ 815.80 kg/m
(Use the formula above to compute other sizes.)
Features & Advantages
Large wrenching/fixturing flats: Six equal faces simplify clamping, keying or torque application without further machining.
High section capacity: Large cross-section supports heavy axial, bending and torsional loads.
Forging & machining friendly: Excellent blank stock for large forgings, heavy shafts, pins and machining to final tolerances.
Heat-treatable: Can be delivered annealed, normalized, quenched & tempered or case-hardened per application needs.
Precision finishing: Ground or turned options deliver concentricity and surface finish suitable for bearing journals or tight assemblies.
Material versatility: From economical carbon grades to corrosion-resistant stainless and high-strength alloys.
Typical Applications
Large bolts, nuts and forged fastener blanks.
Heavy shafts, coupling hubs and large pins with hex flats.
Forging billets for large gears, crankshafts and connecting rods.
Structural dowels, anchor pins, and marine/offshore fittings.
Decorative/architectural solid posts where hex form is desired.
Machine tool spindles and heavy equipment components.
Quality Assurance & Testing
Material certification: Full Mill Test Certificate (MTC) with heat number and chemical analysis.
Mechanical testing: Tensile, yield, elongation and hardness tests as specified.
NDT: UT/MT/VT available for critical orders or forged components.
Dimensional control: Across-flats, straightness and runout inspection; gauge reports supplied on request.
Metallurgical checks: Macro/microstructure examinations and, if required, grain-size or inclusion rating.
Packaging & Delivery
Bundling: Timber-spaced bundles with corrosion-inhibitor film or VCI paper for export.
End protection: Wooden cradles and end caps for precision ground surfaces.
Handling: Lifting lugs or cradles provided for heavy single pieces; single-piece sizes planned to transport/crane limits.
Lead time: Stock/standard grades 2–6 weeks; forged, heat-treated or precision-ground items 4–12+ weeks depending on size and quantity.
Ordering Information - What We Need
Please provide:
Across-flats dimension D × length; quantity.
Material grade and required supply condition (hot-rolled / normalized / quenched & tempered / ground).
Tolerances and surface finish (hot-rolled, turned, ground).
Any NDT/testing requirements (MTC, tensile/hardness, UT, PMI).
Intended end use (machining/forging/structural) and any heat-treatment or machining allowances.
Maximum transport/cranage limits (if single-piece constraints apply).
Why Choose Our Large Hex Bars?
We offer heavy-section rolling, forging and precision finishing combined with metallurgical expertise and full QA traceability-delivering large hex bars that are ready for heavy machining, forging or structural use. Send your dimension and grade list and we'll return size-to-weight tables, machining allowance recommendations and a prompt quotation.
