Product Name

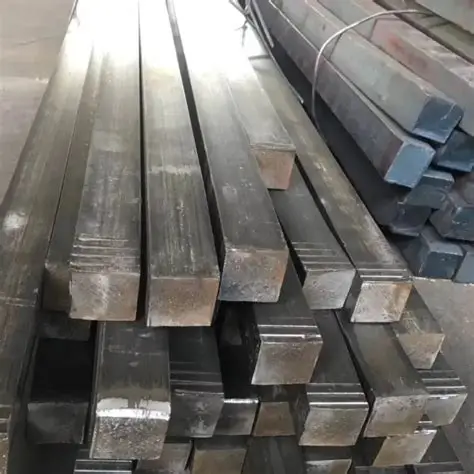

Large-Section Square Steel (Heavy-Duty Solid Square Bars)
Introduction
Large-Section Square Steel are heavy, solid square bars (rod) with large across-flats dimensions manufactured for demanding structural, mechanical and fabrication applications. Offered in hot-rolled, forged, normalized, quenched & tempered or precision-ground conditions, these bars are ideal as shaft/column blanks, heavy pins, coupling hubs, large forgings feedstock, machine bases and structural dowels where high section area and simple geometry are required.
Typical Specifications
Standards: ASTM A29 / A108, EN 10083 / EN 10058, JIS and customer specifications.
Materials / Grades: Carbon steels (e.g., C45 / C55), medium-carbon & alloy steels (e.g., 1045, 4140 / 42CrMo), structural grades (S355, S420), stainless steels (304/316, duplex) and special alloys on request.
Manufacture: Hot-rolled long bars, forged & straightened, hot-upset & cooled, cold-drawn (precision), or turned & ground for tight tolerances. Forged billets available for very large sections.
Size Range (across flats): 40 mm → 800 mm (typical); larger sizes possible by forging/machining.
Lengths: Standard mill lengths (3 m / 6 m / 12 m) or cut-to-length to client requirement; single-piece lengths limited by transport / handling.
Tolerances: Hot-rolled ±0.5–3.0 mm; cold-drawn/ground ±0.01–0.3 mm (process dependent).
Straightness: ≤ 0.5–2.0 mm/m typical; tighter control for precision requirements.
Surface finish: Mill scale, peeled & oiled, turned, ground & polished, or protective coating (VCI oil).
Mechanical Properties (typical, grade & heat-treatment dependent)
Yield strength: ~235 – 700+ MPa (depending on grade and heat treatment).
Tensile strength: ~360 – 1000 MPa.
Elongation: 8–25 % (varies by grade).
Hardness: Specified per application; annealed → low hardness for machining; quenched & tempered → high hardness/toughness.
(Provide exact grade and condition to receive precise property tables.)
Weight Calculation (quick reference)
Mass per metre (kg/m) for solid square bar (steel, density ≈ 7.85 t/m³):
mass (kg/m) = (side in mm)² × 0.00785
Sample weights:
50 × 50 mm → 50² × 0.00785 = 19.625 kg/m
100 × 100 mm → 100² × 0.00785 = 78.50 kg/m
200 × 200 mm → 200² × 0.00785 = 314.00 kg/m
400 × 400 mm → 400² × 0.00785 = 1,256.00 kg/m
Features & Advantages
High section area & strength: Large square cross-section provides simplicity for heavy axial, bending and torsional loads.
Ease of machining & forging: Ideal blank stock for turning, milling, keyways and forging large components.
Heat-treatable: Can be supplied in annealed, normalized, quenched & tempered or case-hardened conditions to meet wear and toughness requirements.
Simple geometry for fittings: Square faces ease clamping, indexing and machining of flats, splines and bolt patterns.
Custom finishes & precision: From rough hot-rolled to precision ground depending on bearing, sealing or assembly needs.
Typical Applications
Large shafts, pins, coupling and hub blanks.
Forging billets for crankshafts, large gears, coupling flanges.
Structural dowels, shear keys, heavy machine components and marine fittings.
Bridge and quay dowels, anchor rod blanks and heavy fasteners.
Architectural and decorative monolithic posts where square solid section required.
Quality Assurance & Testing
Material certification: Full Mill Test Certificate (MTC) with heat number and chemical analysis.
Mechanical testing: Tensile, yield, elongation and hardness tests per order.
NDT: UT/MT/VT available for critical bars or forged parts on request.
Dimensional inspection: Across-flats, corner radius, straightness and runout checks; roundness/flatness for ground conditions.
Traceability: Melt-to-product traceability and batch marking available for critical supply chains.
Packaging & Delivery
Protection: Bundled on timber skids with polymer spacers; VCI oil or shrink wrap for export and long-term storage.
End protection: Wooden/steel cradles and end caps for precision ground ends.
Handling: Lifting lugs or slings for heavy single pieces; special cradling for long/heavy bars.
Transport: Single pieces sized to road/rail/port and crane limits; splicing/sectioning advised when transport limits exceeded.
Lead time: Stock grades typically 2–6 weeks; forged, heat-treated or precision ground orders 4–12+ weeks depending on size and quantity.
Ordering Information - What We Need
Please provide:
Side dimension × length (e.g., 250 × 6000 mm) and quantity.
Material grade and required supply condition (hot-rolled / normalized / quenched & tempered / ground).
Tolerances and surface finish requirements (hot-rolled vs ground).
Testing/NDT requirements (MTC, tensile, hardness, UT, PMI).
Intended end use (machined part, forging blank, structural) and any heat treatment or machining allowances needed.
Delivery constraints (max transport weight/length, on-site cranage).
With these inputs we will provide weight, material certificate, heat-treatment plan (if needed), machining/forging allowances, a quotation and estimated lead time.
Why Choose Our Large-Section Square Steel?
We combine heavy-section rolling, forging and precision finishing capability with metallurgical and QA expertise-ensuring large square bars meet demanding mechanical, geometric and traceability requirements for critical industrial and structural applications. Send your dimension and grade list and I'll return a size-to-weight table, machining allowance suggestions and a prompt quotation.
